Armored Vehicles:
Unyielding Protection
Engineered to safeguard lives and assets in high-risk environments.
In high-risk environments, safety is paramount. Our armored vehicles are engineered to provide unyielding protection, ensuring the safety of personnel and assets. With a deep understanding of security needs and a focus on dependability, we deliver vehicles that excel in challenging situations. Our commitment to transparency and innovation ensures that each armored solution meets the highest standards of performance and security.
Armored VVIP Car – Mahindra Scorpio 4WD The Armored VVIP car, developed on the Mahindra Scorpio 4WD platform, is tailored for senior officers and VIPs requiring maximum protection without compromising on comfort. Engineered to withstand fire from an AK-47, this robust vehicle provides a secure and smooth ride, making it ideal for high-risk environments.
Key Highlights:
Enhanced Protection: Armored to withstand AK-47 rifle fire, ensuring maximum passenger safety in critical situations.
Spacious Interior: Comfortably accommodates up to five passengers with secure and luxurious interiors.
Customizable Options: Features advanced safety systems including run-flat tires, fuel tank protection, ballistic carpet, GPS, LCD screen, mobile charger, and army-specific fittings.
Upgradeable Armor: Armor protection can be upgraded to resist fire from 7.62mm SLR rifles for enhanced battlefield security.

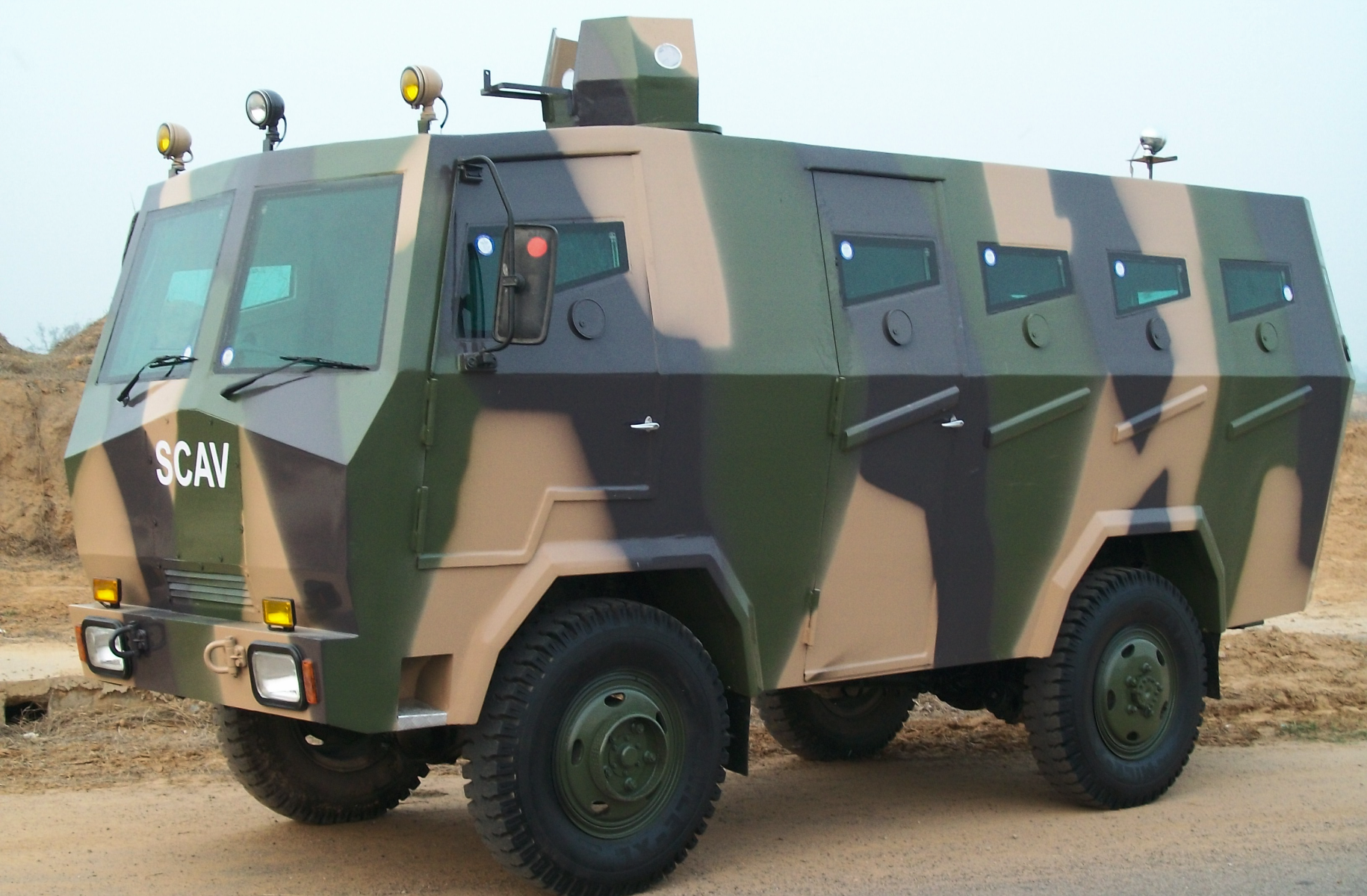

Section- Carrying Armoured Vehicle
Developed on the robust Swaraj Mazda 4WD all-terrain platform, this bulletproof
troop carrier is engineered for demanding operational environments. It is
ideally suited for use as a pilot vehicle, officer transport, or gateway
vehicle, with the capacity to securely carry a section of 10 heavily armed
personnel, ensuring readiness in the face of any unforeseen circumstances.
This armored vehicle offers exceptional protection, with the ability to
withstand fire from AK-47 and SLR 7.62 rifles. Compact yet resilient, it is
designed for multi-purpose use, featuring a roof hatch equipped with an MMG
mount that enables defensive firing from within the vehicle, making it a
reliable asset in high-risk operations.
General Specifications:
| Technical Specifications | |
|---|---|
| Seating Capacity | 10 |
| Overall Length | 5,100 mm |
| Overall Width | 2,025 mm |
| Overall Height | 2,890 mm |
| Wheel Base | 2,845 mm |
| Max GVW | 6000 KG |
| Ground Clearance | 354 mm |
Protection from direct hit of 7.62 mm x 51 mm Ball, 5.56 mm INSAS and 7.62 AK 47 Rifle from 10 meter distance at 90 degree angle of attack on all sides and at 45 degree angle of attack on top.
| Engine Type | 4 Stroke, Turbo Charged, Intercooled |
|---|---|
| Power | 115 PS @ 3000 RPM |
| Steering | Power Steering |
| Power to Weight Ratio | 27.24 KW/Ton |
| Maximum Speed | On Road - 100 Km/h Cross Country - 60 Km/h |
| Transmission | 5 Speed Synchromesh |
| Suspension Front | Torsion Bar |
| Rear Suspension | Semi Elliptical Multi Leaf Spring |
| Brakes Front | Disc Type |
| Brakes Rear | Drum Type |
| Fuel Tank Capacity | 45 Ltrs |

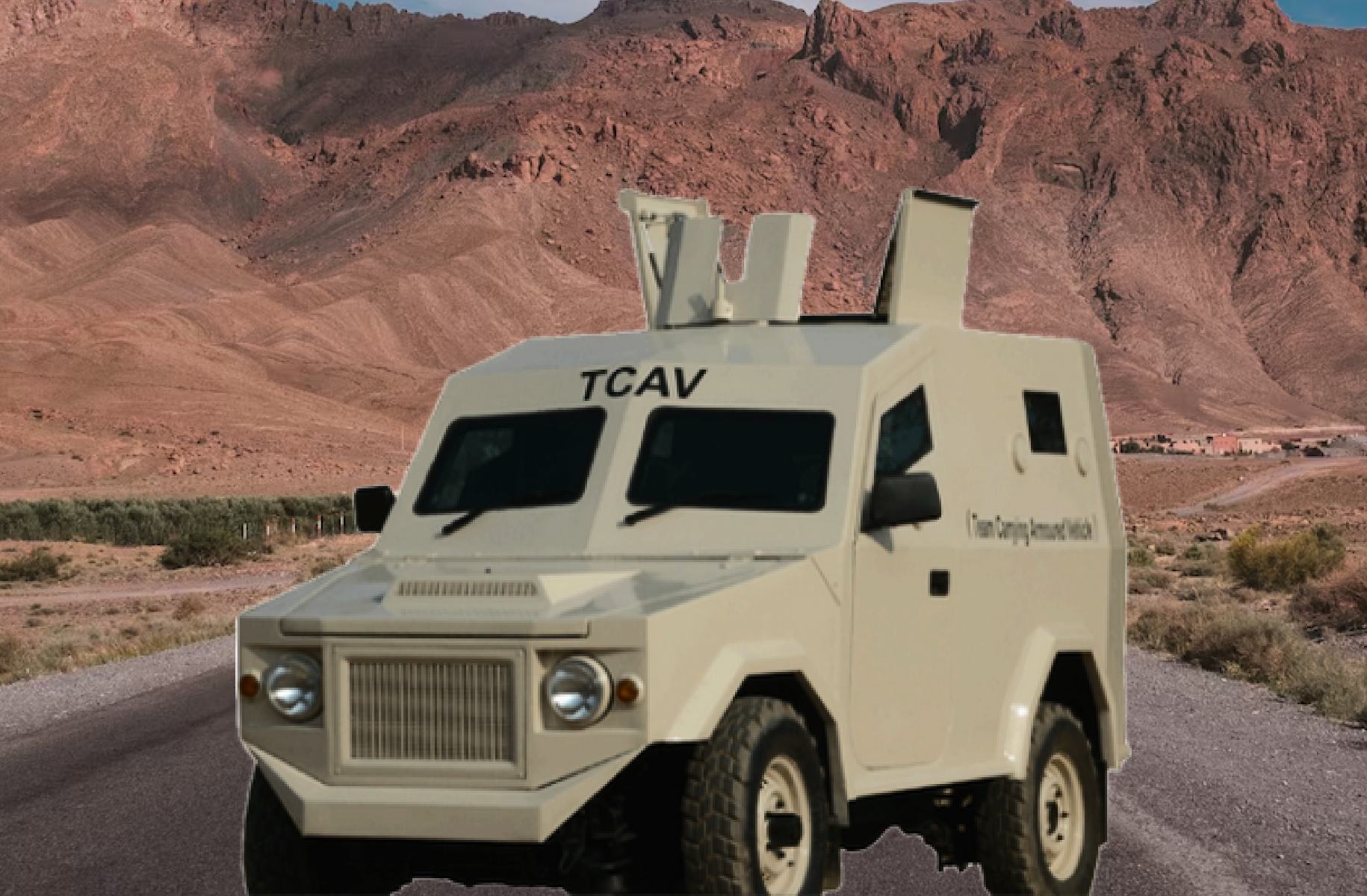

Team Carrying Armoured Vehicle
Engineered on the Tata Sumo 4WD all-terrain platform, this bulletproof armored
van is designed for high-security operations. It serves effectively as a pilot
vehicle, officer transport, or gateway vehicle, with the capability to
accommodate a specialized team of six heavily armed personnel, providing robust
protection in critical situations.
The TCAV van is built to withstand fire from AK-47 and SLR 7.62 rifles, ensuring
superior defense. This compact, rugged vehicle features a roof hatch with an LMG
mount for defensive firing, and comes equipped with various enhancements such as
run-flat tires, fuel tank protection, ballistic carpets, GPS systems, and
military-grade fittings, making it a versatile choice for high-risk
environments.
Technical Specifications:
| Technical Specifications | |
|---|---|
| Seating Capacity | 6 |
| Overall Length | 3,675 mm |
| Overall Width (Excluding Outside Mirror) | 1,720 mm |
| Overall Height (Without Gun Mount) | 2,050 mm |
| Wheel Base | 2,435 mm |
| Max GVW | 3120 KG |
| Ground Clearance | 220 mm |
Protection from direct hit of 7.62 mm x 51 mm Ball, 5.56 mm INSAS and 7.62 AK 47 Rifle from 10 meter distance at 90 degree angle of attack on all sides and at 45 degree angle of attack on top.
Automotive:
| Engine Type | 4 Stroke, Turbo Charged, Intercooled |
|---|---|
| Power | 115 PS @ 3000 RPM |
| Steering | Power Steering |
| Power to Weight Ratio | 27.24 KW/Ton |
| Maximum Speed | On Road - 100 Km/h Cross Country - 60 Km/h |
| Transmission | 5 Speed Synchromesh |
| Suspension Front | Torsion Bar |
| Rear Suspension | Semi Elliptical Multi Leaf Spring |
| Brakes Front | Disc Type |
| Brakes Rear | Drum Type |
| Fuel Tank Capacity | 45 Ltrs |
